JH-23

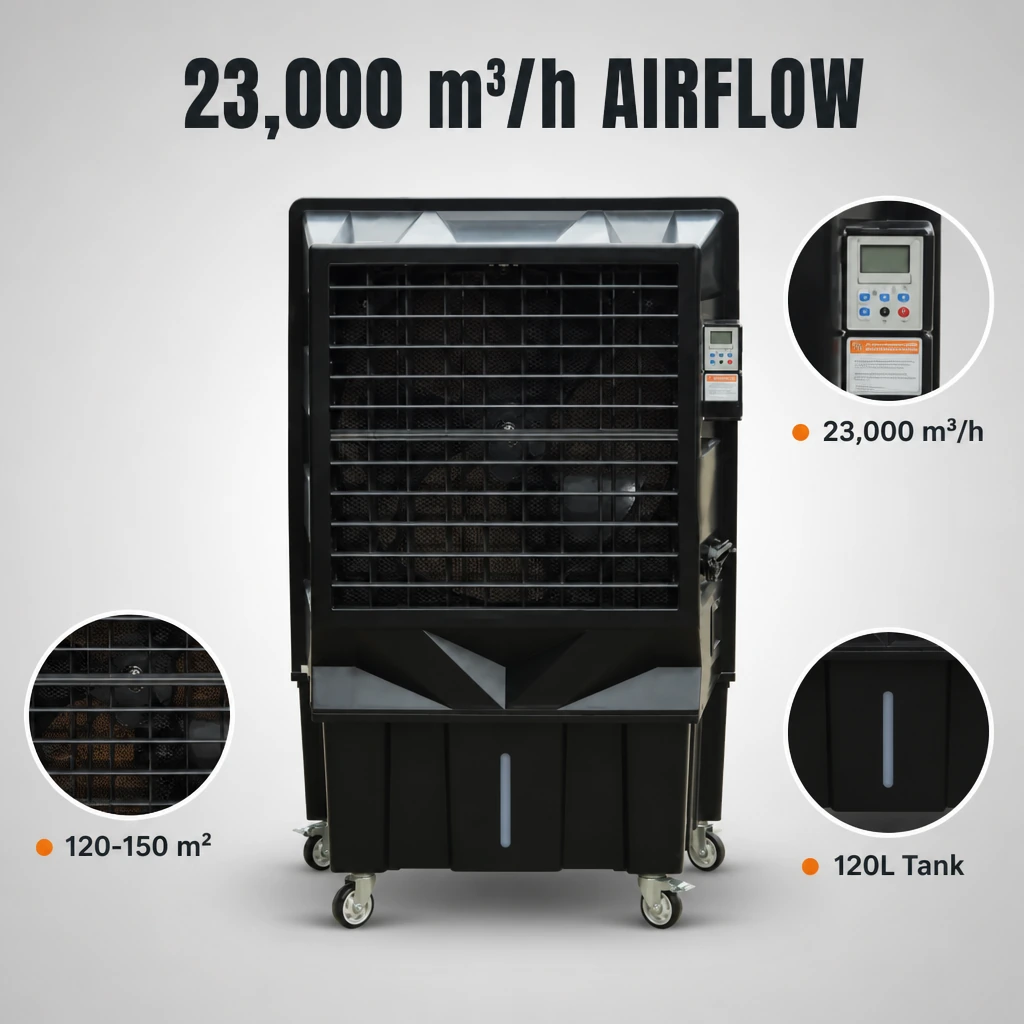

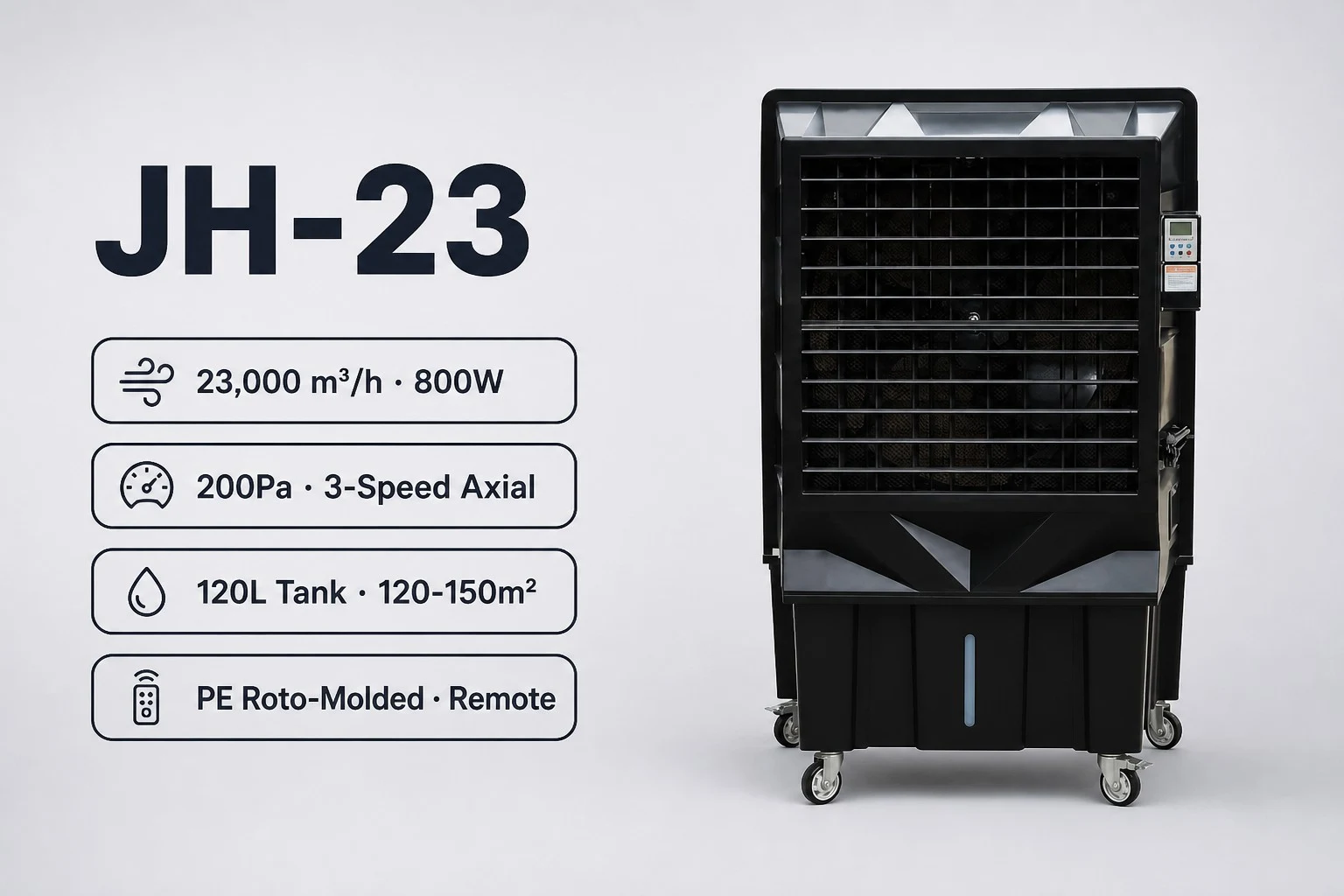

23,000 m³/h heavy-duty portable evaporative air cooler, 800W, 120L tank, 220-240V single phase, 120-150m² coverage
JH-23 is a heavy-duty portable evaporative cooler between the HHB 22k and 30k HHB units. 23,000 m³/h airflow at 800W on 220-240V single phase, with 200Pa pressure for semi-open large spaces. 120L tank, PE roto-molded shell.
Why Choose This Model
Product Highlights
23,000 m³/h in a Movable Cabinet
Slots between the HHB 22k and 30k HHBs—800W of motor power with 200Pa air pressure for large semi-open industrial spaces
120L Long-Runtime Tank
120L water capacity with 12-17L/H consumption supports long wet-cooling runs between refills—fewer interruptions during peak shifts
PE Roto-Molded Shell
One-piece molded polyethylene shell—no joints or seams, impact and corrosion resistant for harsh industrial environments
220-240V Plug & Play
Standard single-phase power—roll to the heat, plug in, and start cooling with no installation. 3-speed remote control keeps operation simple
120-150m² Wide Coverage
Targets large open production floors, packing areas, logistics halls, and event spaces—wherever mass air movement matters more than ductwork
Core Advantages

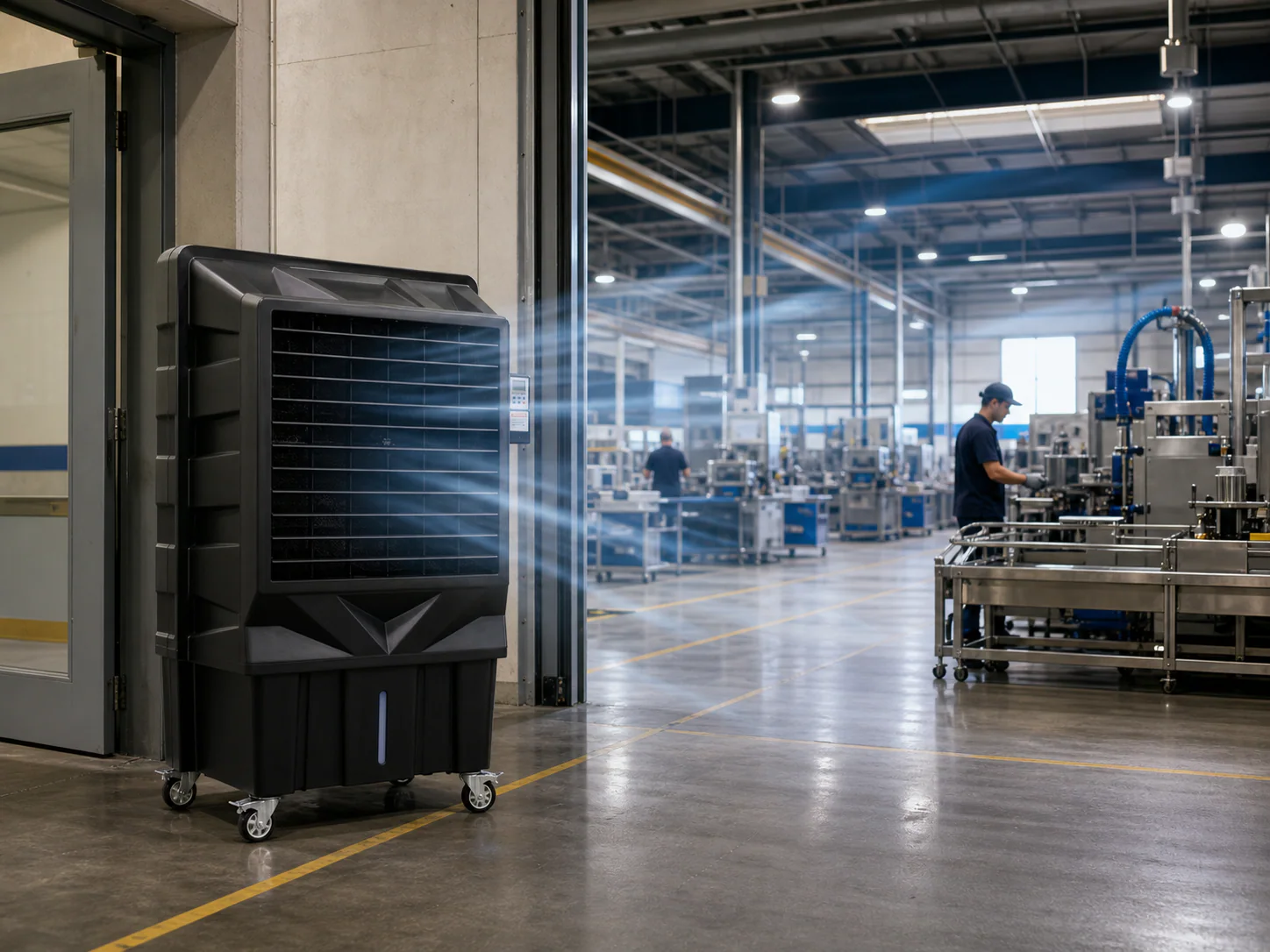

Middle-Tier Portable Industrial Cooling
Sits between the HHB 22k (22,000 m³/h) and 30k HHB (30,000 m³/h). 800W motor on 220-240V single-phase power, with 200Pa air pressure to push air across large semi-open sites. 1120×670×1700mm cabinet fits through standard doorways and corridors.

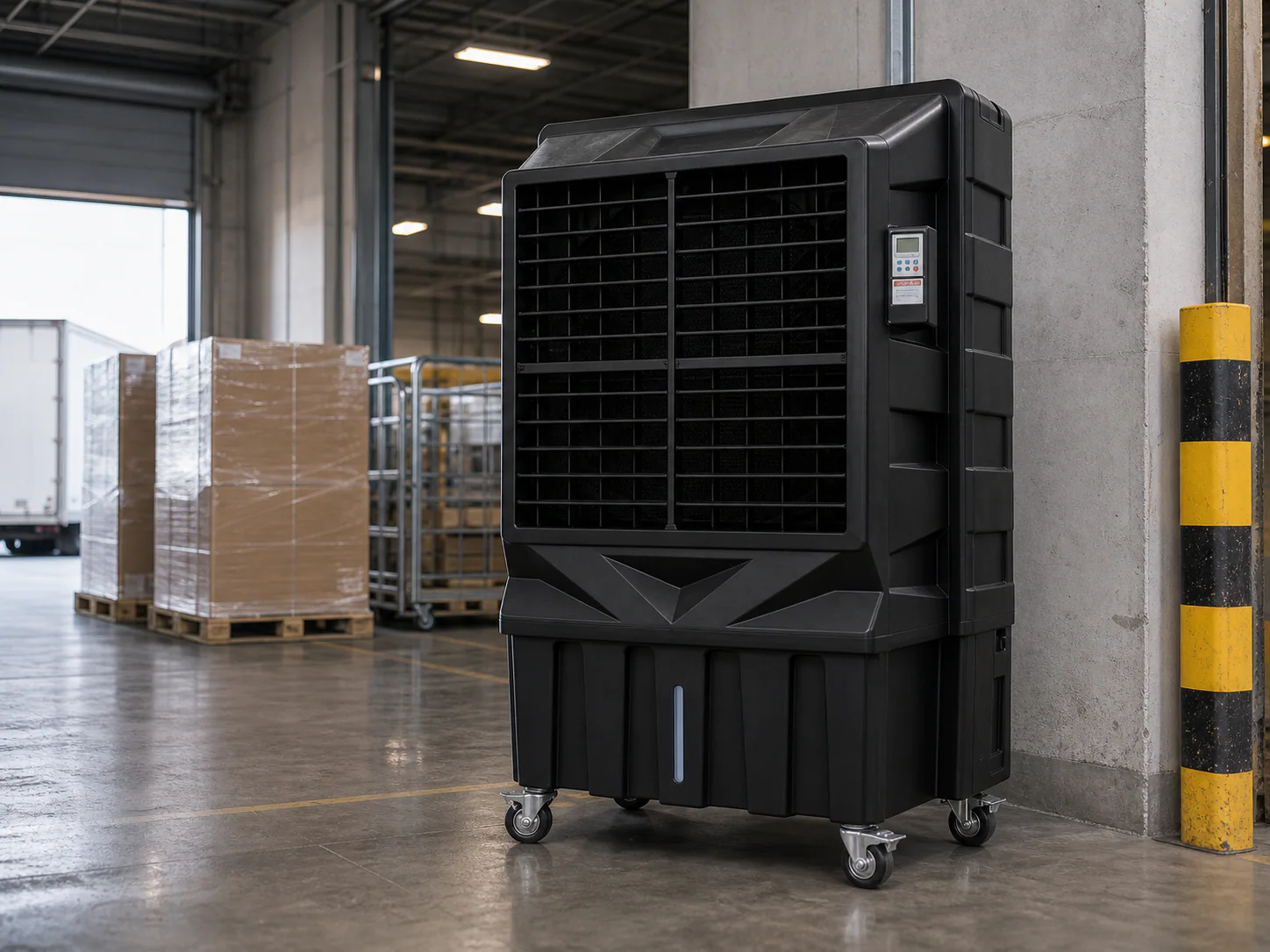

PE Roto-Molded for Industrial Use
One-piece polyethylene shell—no joints, no seams, impact and corrosion resistant. 54kg net / 62kg gross weight balances ruggedness with roll-anywhere portability on casters. Side air discharge with manual up-down louvers for directional control.

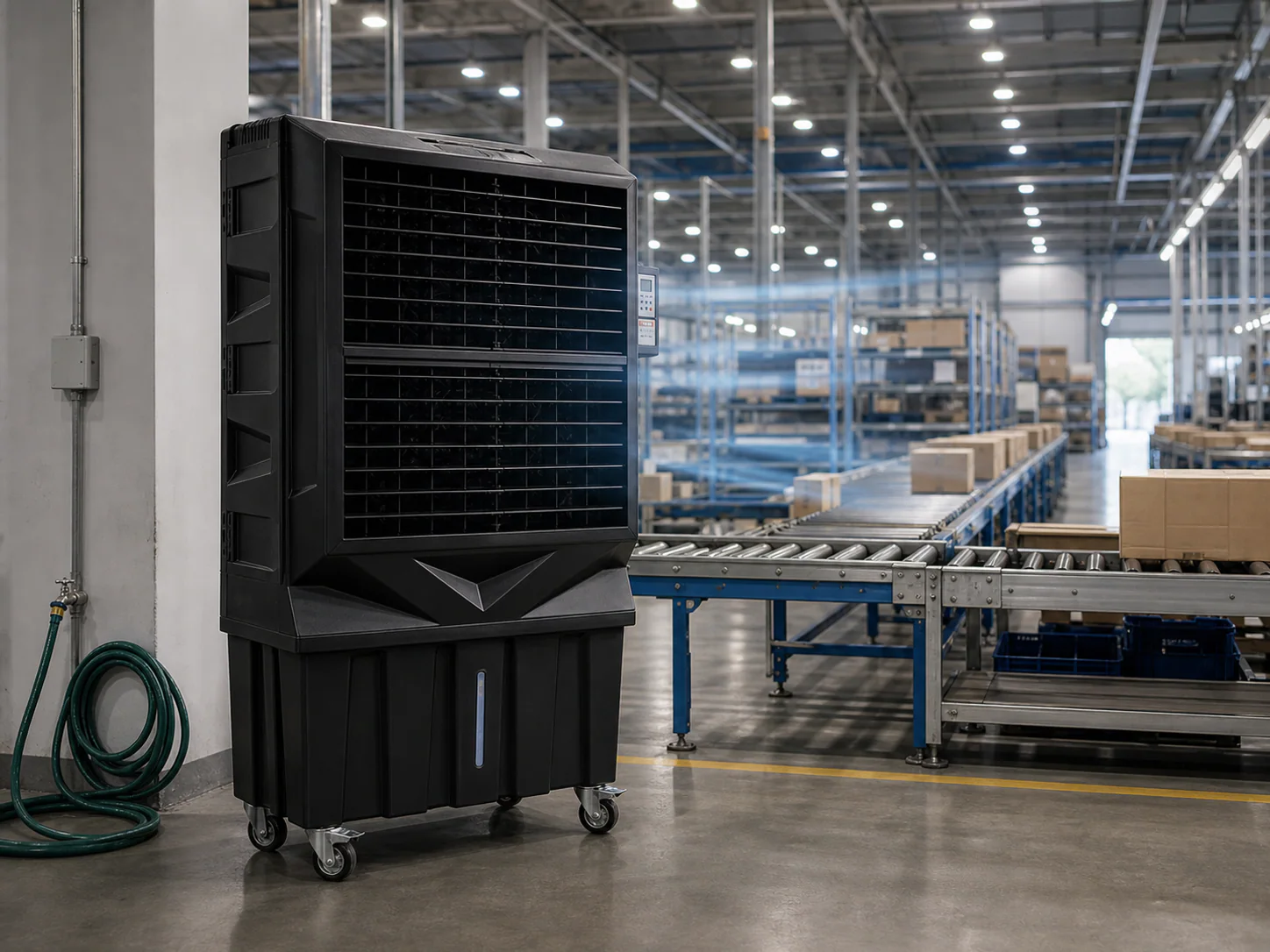

120L Tank, 12-17L/H, Long Wet-Cooling Runs
120L water capacity at 12-17L/H consumption supports 7-10 hours of continuous wet-cooling between refills—fewer operator interventions during peak production shifts. ≤75dB at full output keeps the noise floor reasonable for occupied production lines.

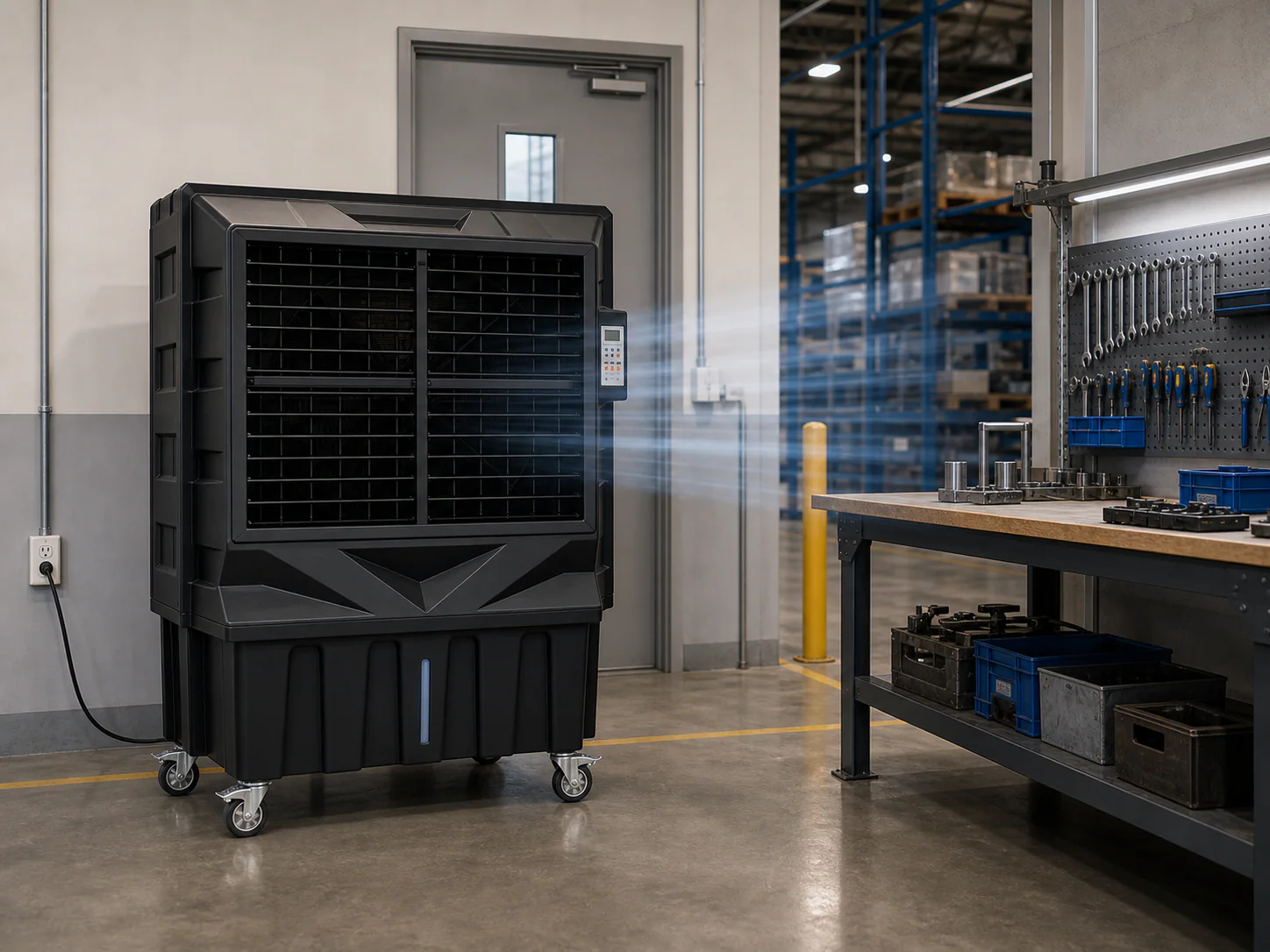

Roll, Point, Cool — No Installation
Standard 220-240V single phase. No ductwork, no fixed install. Roll the unit to wherever heat builds up—production lines, packing areas, or event tents—plug in, point the airflow, and run. 3-speed remote control for flexible operation.
Technical Specifications
Power
800W
Airflow
23,000 m³/h
Coverage
120-150m²
Dimension
1120×670×1700mm
